YSXP-250 8 Head Marble Moulding Polishing Machine
Looking for high-quality marble moulding machine? Yongtao Machinery has the stone moulding machine specially choosen for you! Our marble moulding machine adopt layered grinding and PLC system control. Contact us to obtain our high quality marble moulding machine!
Product introduction

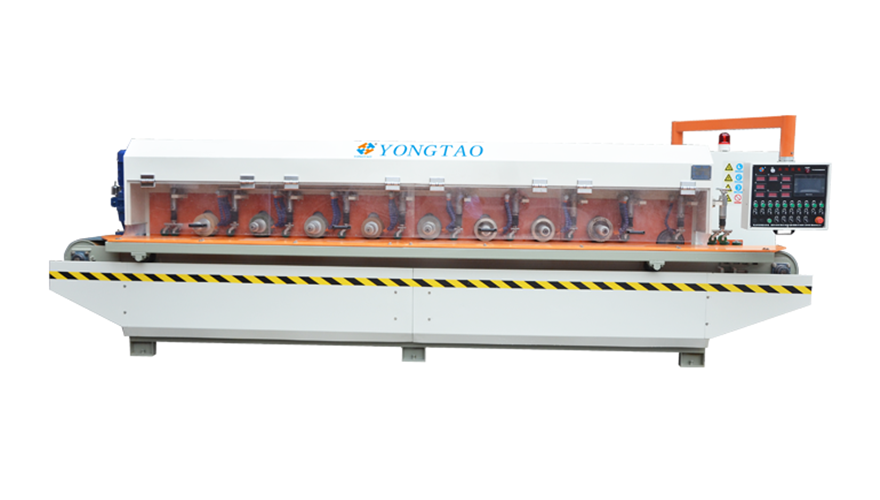

Description of YSXP-250 8 Head Marble Moulding Polishing Machine
YSXP-250 8 Head Marble Moulding Polishing Machine, this granite moulding machine is one of the latest CNC models of YONGTAO Machinery. The machine mainly process various type of stone lines. It can finish profiling and polishing in one time. The rough grind part adopt layered grinding, and the polishing part adopt PLC system to automatically control wheels. It make sure the surface smoothly. The machine is easy to operate, easy to repair, popular in market. We have competitive marble molding machine price.
Stone Molding Machine:
YSXP-250 8 Head Marble Moulding Polishing Machine Processed products:
1、Marble Bullnose Moldings
2、Stone Bullnose Moldings
3、Marble Moulding Border Decos
4、Stone Ogee Mouldings
5、Marble Moulding
6、Marble Ogee Mouldings
7、Stone Bullnose Ogee Moldings
8、3/4" X 12" Pencil Liner Trim Chair Rail Molding Wall Tile
9、4x12 Baseboard Trim Molding Honed Marble
10、2"x12" Marble Chair Rail Honed
11、marble 2x12 polished chair rail mold
12、Marble 2x12 Chair Rail Decorative Crown Molding Trim Ogee
13、Marble Tile Polished 2x12 Chair Rail
Parameter of YSXP-250 8 Head Marble Moulding Polishing Machine
Machine specifications
| Nos. of profile head | 3pc |
|---|---|
| Nos. ofpolish head | 5pc |
| Diameter of wheel | Φ180-200mm*30mm |
| Motor power of profile head | 7.5kw |
| Motor power of polish head | 5.5kw |
| Method of polishing | automatic |
| Workable width | 30-400mm |
| Max profiling width | 250mm |
| Processing speed | 0.3-3.0m/min |
| Max processing thickness | 80mm |
| Total power | 58.63kw |
| Water consumption | 500L/min |
| Size of machine | 10.3m*2.0m*1.8m(with frame) |
| Weight | About5000 kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
