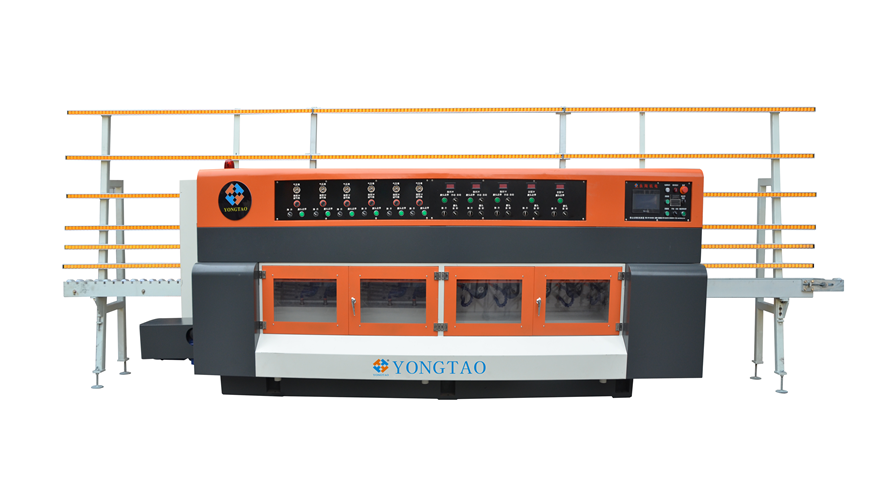

YSMD 5+3+3 Marble Profiling and Chamfered Edge Polishing Machine
Yongtao YSMD 5+3+3 marble edge polishing machine uses 5 heads for profiling and polishing, 3 for straight edges and 3 for chamfered edge polishing.
Product introduction
Description of YSMD 5+3+3 Multifunction Marble Edge Profile Chamfer Polishing Machine
YSMD 5+3+3 Multifunction Marble Edge Profile Chamfer Polishing Machine, this marble edge profiling machine is the new generation product of Yongtao Machinery. It can process single thick slab and double thick slab for all kinds of edge shapes, such as 180 degree round edge, flat edge, chamfer etc. This machine have 2 heads to profile, and 3 heads to polish. The polishing wheel adopts automatic control system. It great save the labor cost, and improve the stability of product effect.
marble edge polisher:
Stone Edge Shape:
1. Straight Edge 2. chamfer 3. bevel 4. bevel edge 5. 1/2" bevel 6. 1/4 bevel 7. 1/8" bevel 8. Half bevel 9. Small Bevel 10. Large Bevel 11. 3/16" bevel 12. 3/8" bevel 13. 3/4" bevel 14. 45 Bevel 1/4" Rad. 15. 1-1/2"Laminated Bevel 16. ogee bevel 17. ogee Edge 18. Waterfall 19. Bevel Top & Bottom 20. Half Bullnose 21. Demi Bullnose 22. Full Bullnose 23. Ogee Bullnose 24. Dupont Bullnose 25. 1-1/2" Laminated Bullnose 26. Double Radius 27. Double Cove 28. 1/4" Radius 29. 1/8" Radius 30. 5/8" Radius 31. Strait Edges 32. 1/4" Round 33. 1/8" Round 34. 3/8" Round 35. 3/16" Round 36. Round Top & Bottom 37. Standard Ogee 38. Dupont Edge 39. Crescent Pencil edges 40. triple pencil edge 41. Ogee Square 42. Offset Ogee 43. Offset Ogee Bullnose 44. Offset Dupont 45. Offset Dupont Bullnose 46. Cove Dupont 47. Cove Ogee 48. Stair Tread 49. Square Eased 50.Lipping
Parameter of YSMD 5+3+3 Multifunction Marble Edge Profile Chamfer Polishing Machine
We have marble edge poliser for sale and we provide you with edge polising machine, marble edge polishing machine and so on.
Machine specifications
| Nos. of profile head | 2pc |
|---|---|
| Nos. ofpolish head | 3pc |
| Diameter of wheel | Φ150mm*30mm |
| Motor power of profile head | 5.5kw |
| Nos. Of flat polish head | 3pc *0.75kw |
| Nos. Of chamfer polish head | 3pc *0.75kw |
| Processing width | 100-2800mm |
| Diameter of polishing wheel | 95mm |
| Processing speed | 0.5-3m/min |
| Max processing thickness | 60mm |
| Total power | 36.05kw |
| Air consumption | 30L/min |
| Water consumption | 300L/min |
| Size of machine | 7.5m*1.25m*2.3m (with frame) |
| Weight | About4500 kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
